Getting Started¶
Prepare Datasets¶
Dataset with vector observation¶
The dataset must be a CSV file containing the following columns. The data should be chronologically ordered.
column name | description |
---|---|
episode | an episode ID |
observation:X | a real value for the Xth dimension in an observation |
action:X | a real value for the Xth dimension in an action (continuous control) or an action ID (discrete control) |
reward | a real value for reward |
This is an example CartPole data:
episode,observation:0,observation:1,observation:2,observation:3,action:0,reward
0,0.03197332076282214,0.023978136772313002,-0.01460231690901137,0.01428123941035453,1,0.0
0,0.0324528834982684,0.21930642661209865,-0.01431669212080428,-0.28297288746447075,0,1.0
.
.
.
Dataset with image observation¶
The dataset must contain a CSV file and image files. The data must contain the following columns.
column name | description |
---|---|
episode | an episode ID |
observation:0 | a image file name (e.g. observation_0.png) |
action:X | a real value for the Xth dimension in an action (continuous control) or an action ID (discrete control) |
reward | a real value for reward |
This is an example:
episode,observation:0,action:0,reward
0,observation_0.png,1,0.0
0,observation_1.png,0,0.0
.
.
.
Note
The image files must be located in the directory that contains only image files to upload.
Start Server¶
At the first launch, $HOME/.minerva
will be created to store datasets, databases and training metrics.
You can configure this by setting $MINERVA_DIR
.
For example:
$ export MINERVA_DIR=$HOME/.custom_dir
Now you can start MINERVA as follows:
$ minerva run [--host HOST_NAME] [--port PORT]

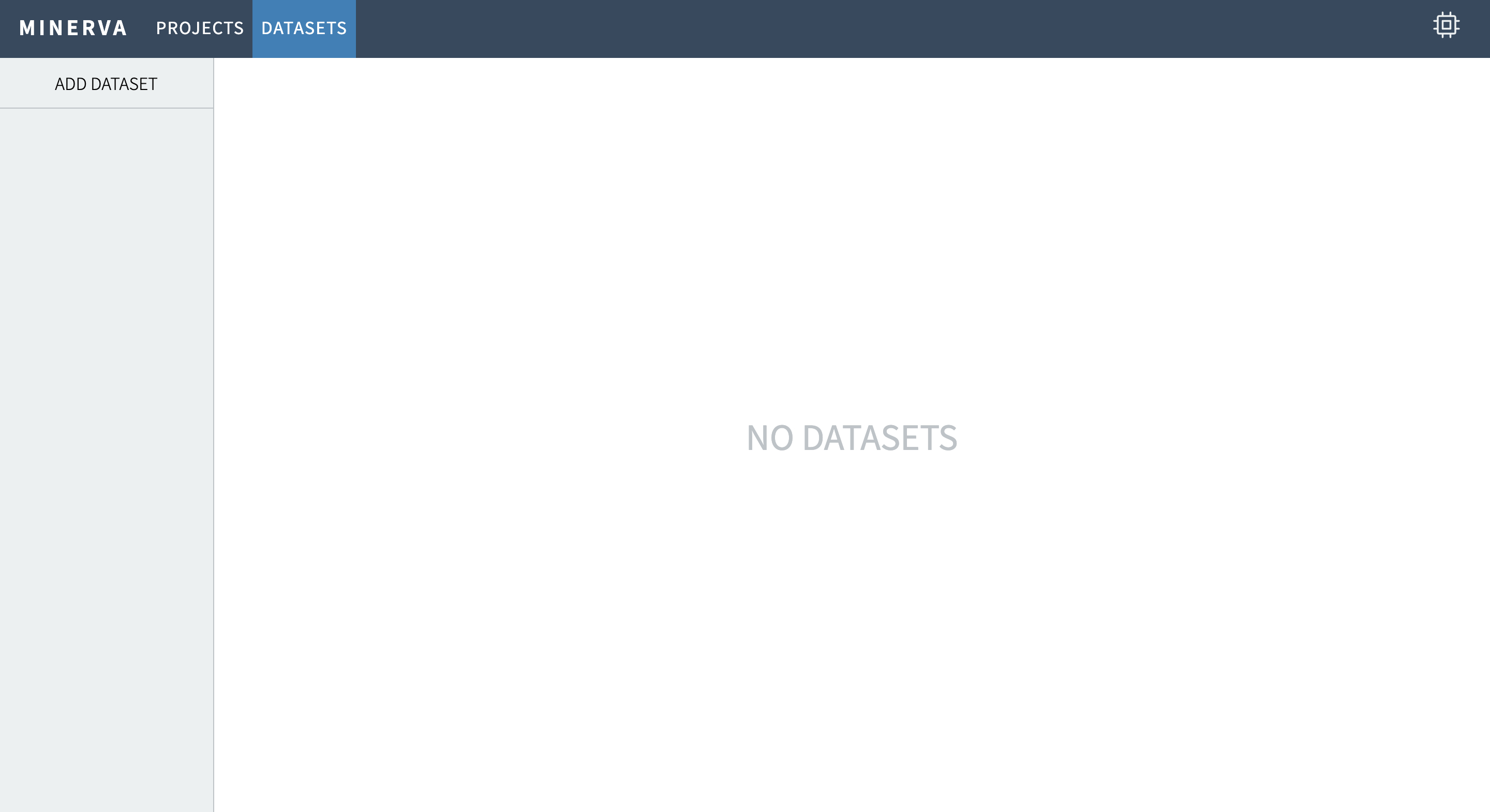

Then, open http://localhost:9000 and you’ll see the MINERVA UI.
Upload Dataset¶

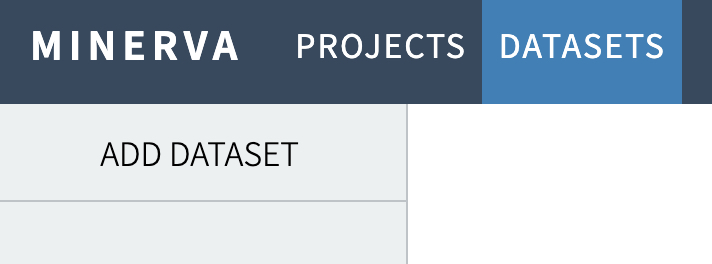

To upload a new dataset, click ADD DATASET
button.
Upload dataset with vector observation¶
- Click
UPLOAD
button to select the dataset CSV file. - Check
discrete control
if the action-space is discrete. - Click
SUBMIT
to upload the dataset.

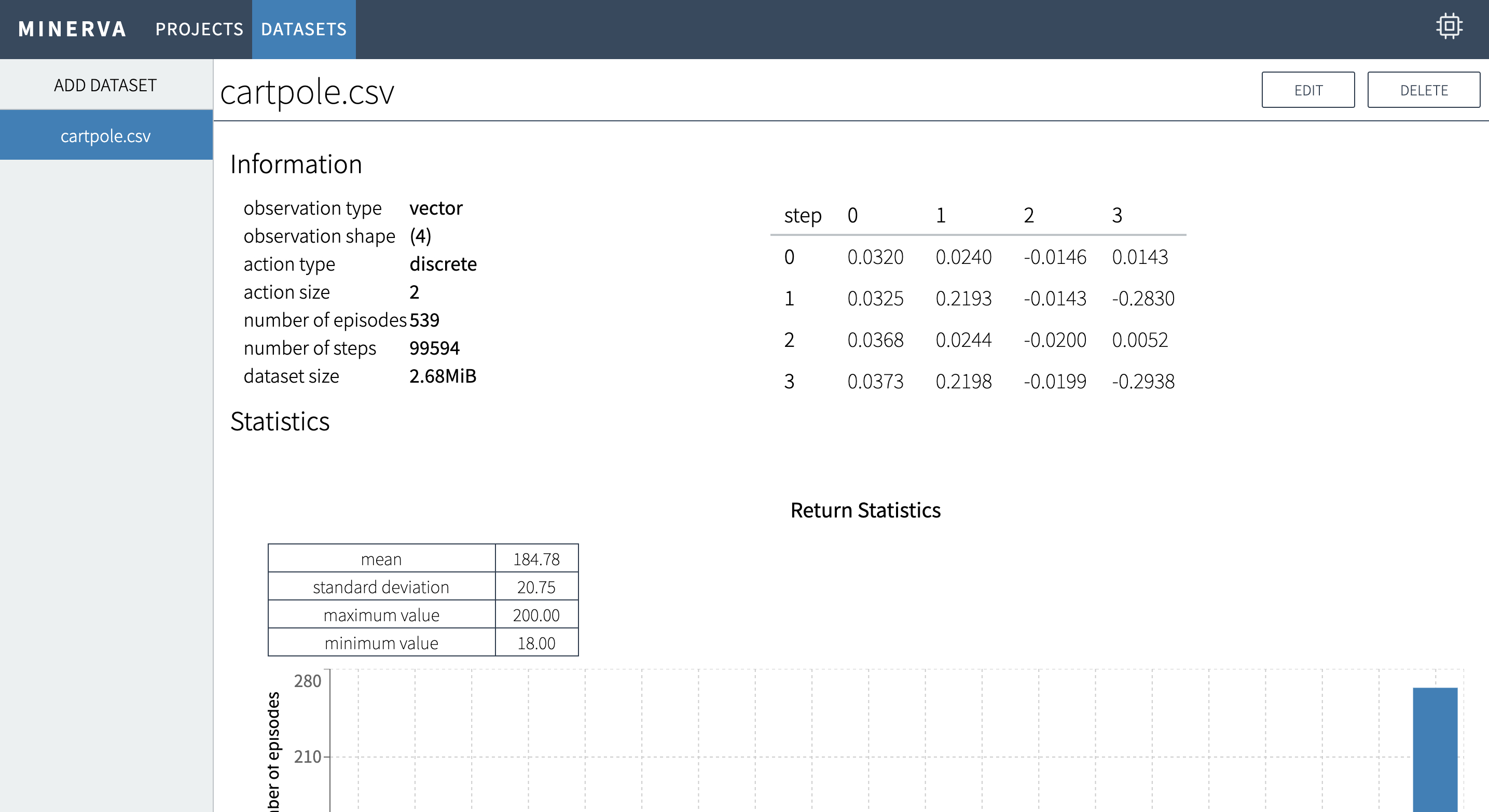

This is an example dashboard screen after uploading a vector dataset.
Upload dataset with image observation¶
- Click
UPLOAD
button to select the dataset CSV file. - Check
discrete control
if the action-space is discrete. - Check
image observation
. - Click
UPLOAD IMAGE DIRECTORY
button to select the directory containing image files. - Click
SUBMIT
to upload the dataset.

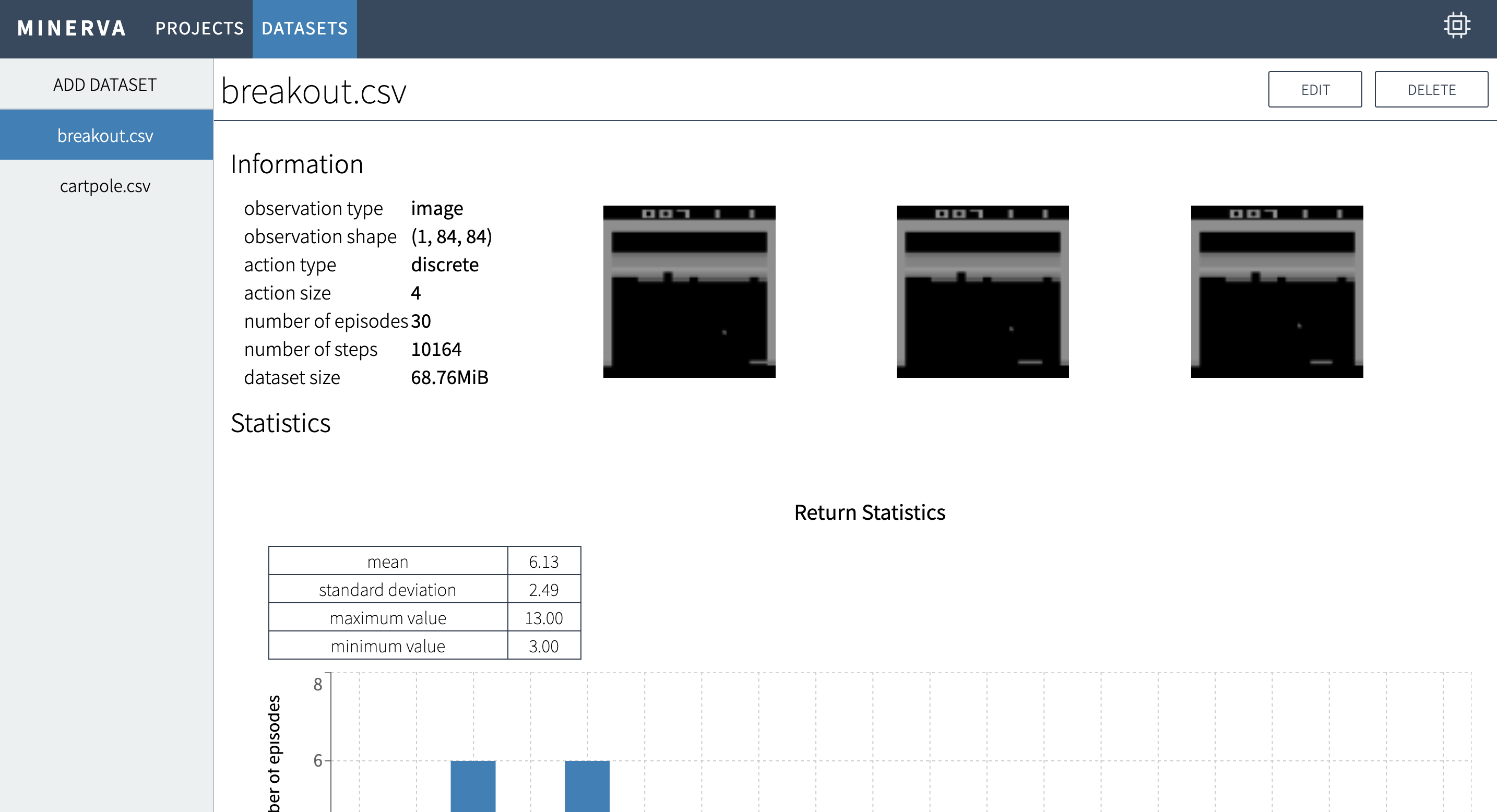

This is an example dashboard screen after uploading an image dataset.
Note
The all files in the selected directory will be uploaded.

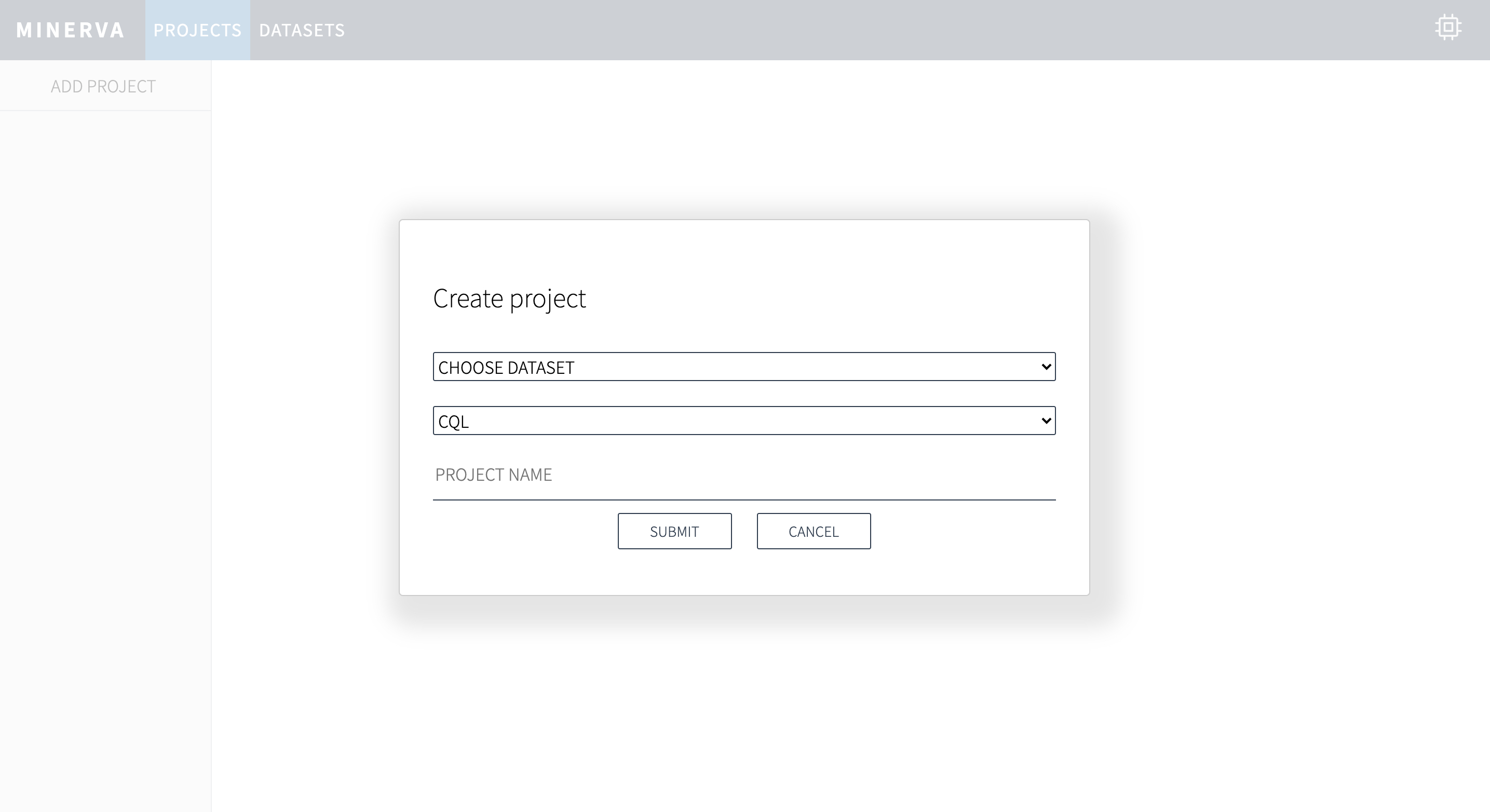

Create Project¶
To create a new project, click ADD PROJECT
in the project page.
Then,
1. Choose a dataset from the uploaded ones.
1. Choose an algorithm to learn.
2. Fill the project name.
3. Click SUBMIT
button to create.
Start Training¶

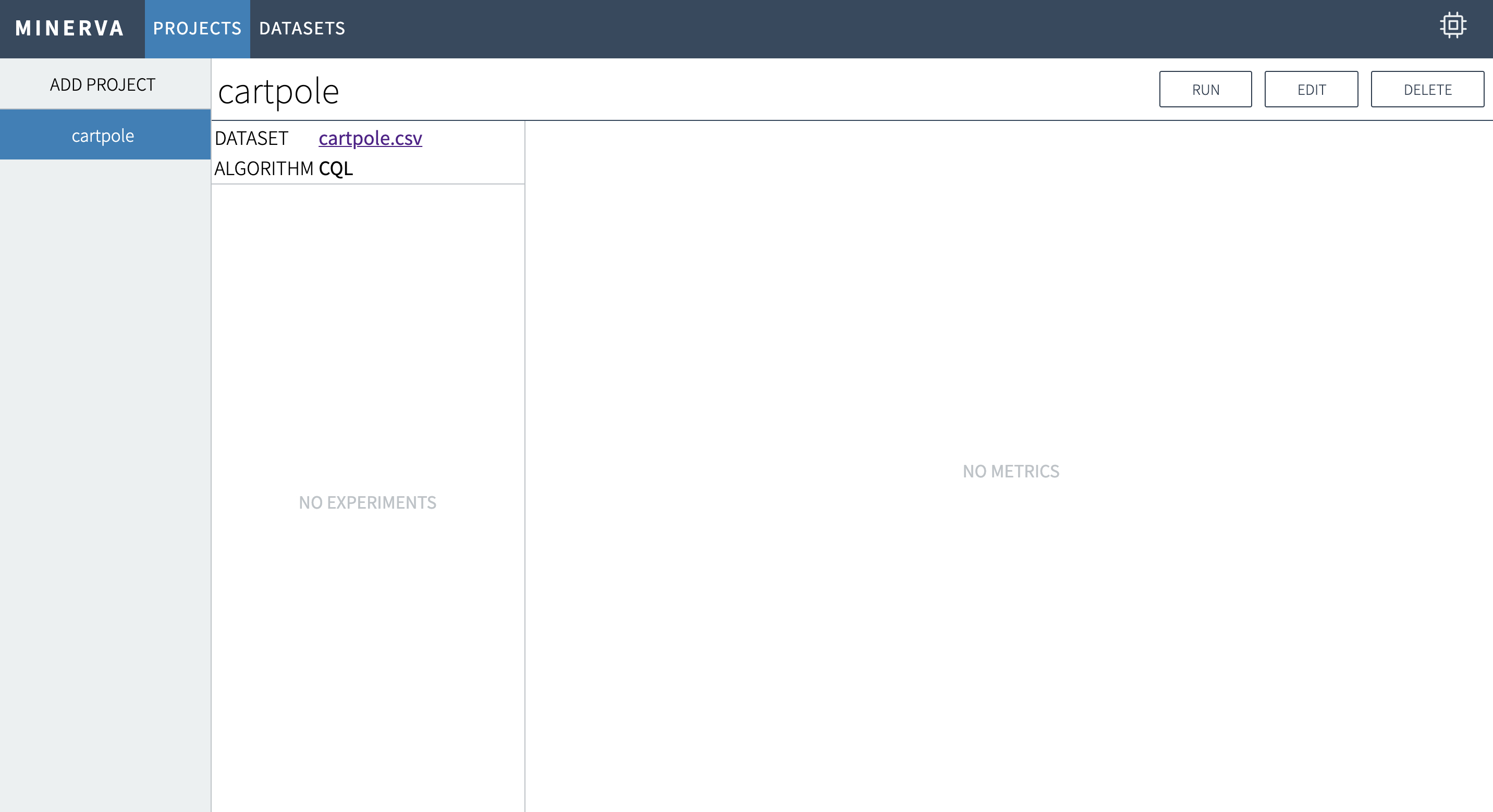

Once you created a project, you will see an empty project like below.
Click RUN
button to start training.

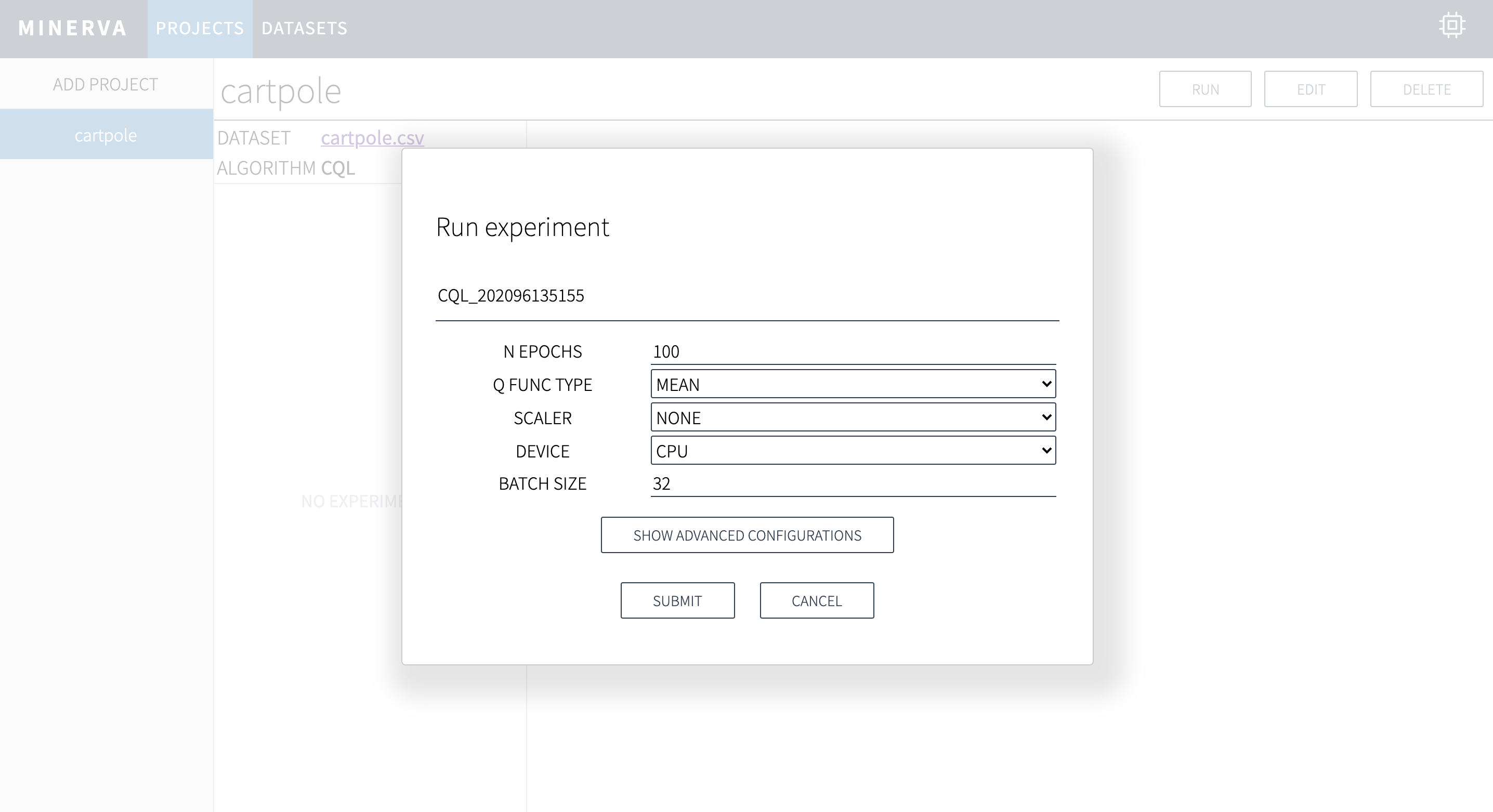

Train with vector observation¶
- Configure training settings.
- Choose device to use CPU or GPU.
- (optional) Configure advanced settings to click
SHOW ADVANCED CONFIGURATIONS
. - Click
SUBMIT
to start training.

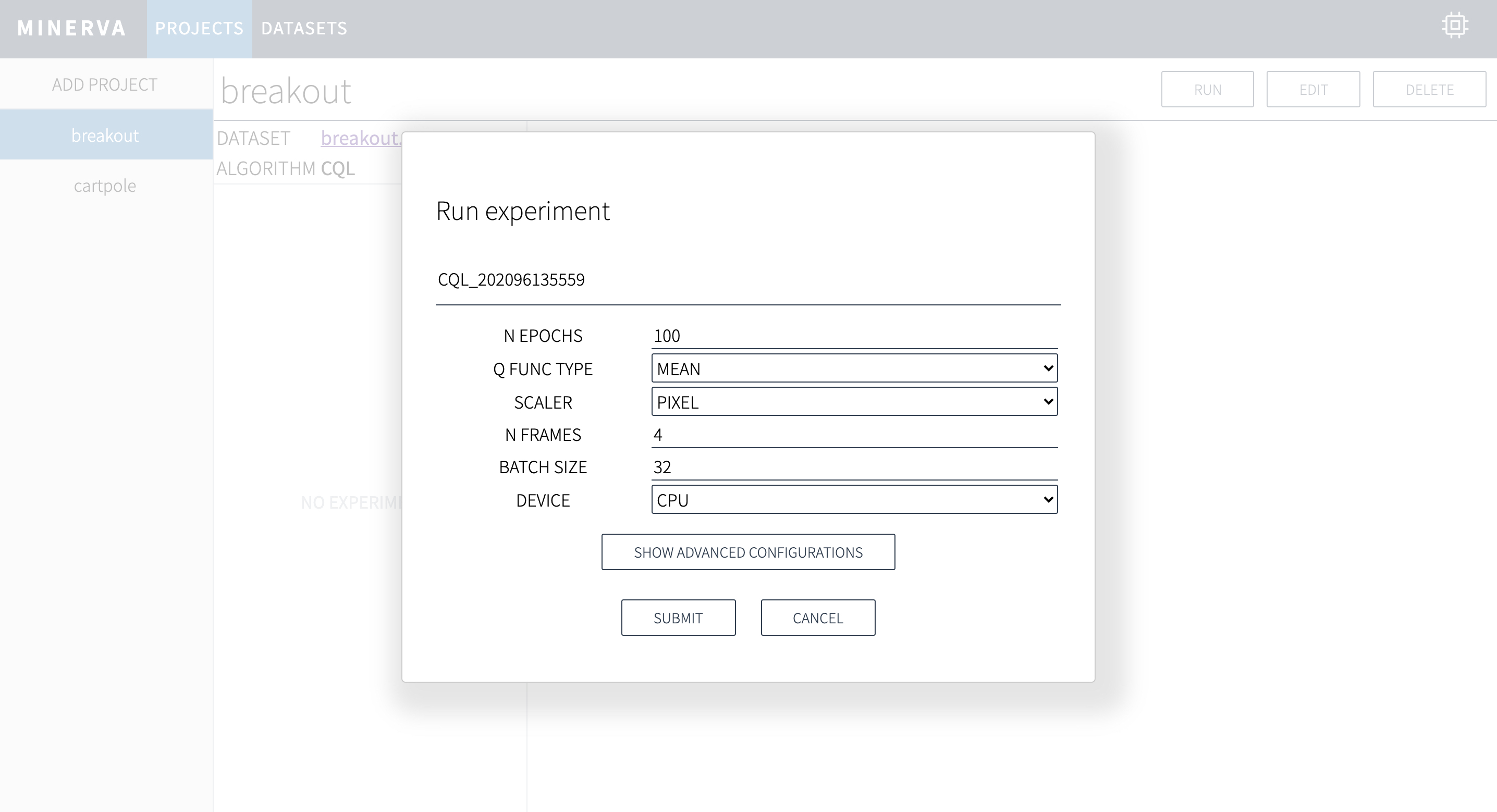

Train with image observation¶
To train with image observation, you will see different configurations from
vector observation projects.
The most important option is N_FRAMES
which controls frame stacking to
handle temporal data without recurrent networks.
Note
Basically, the SCALER
option should be set to PIXEL
when training with image observation.

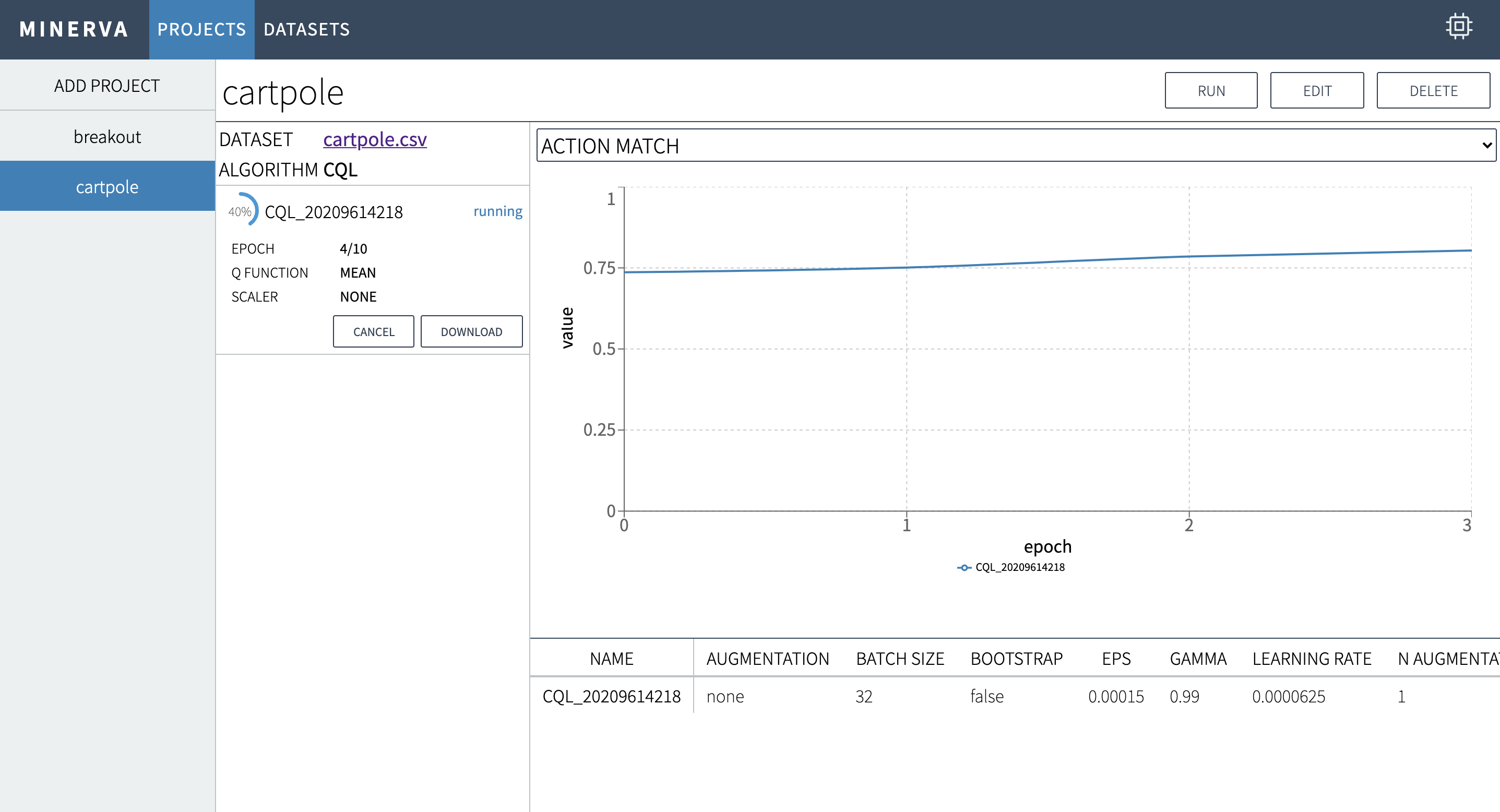

Once starting training, you will see information about your training.
If you need to kill the training process in the middle of training,
click CANCEL
button.
